Motion Controller

Product code: Vigiro IP26, Vigiro SV26

Applications

Boss Products offers two options for the motion controller engineered to control the constant speed of a rotative shaft. It is frequently installed on buckets’ elevators, chain conveyors, mixers, locks, etc.

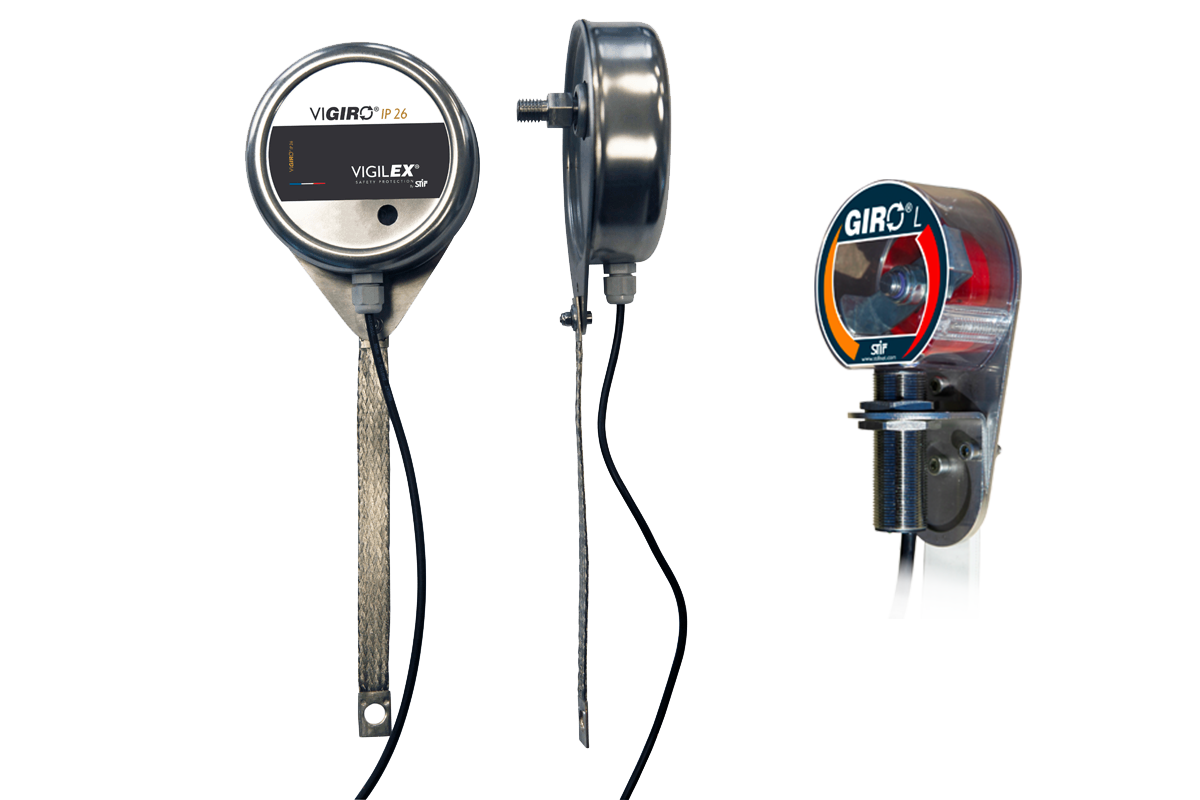

The VIGIRO IP26  is an INTEGRATED INDUCTIVE DETECTOR with a Vmax of 500 rpm. VIGIRO IP 26 devices can be connected directly to a central control area or to the hazard monitor M-JET+. Quick fitting to the shaft, the sensor requires only a M12 mounting bolt (M10 optional) and features an anti-rotation flexible strap. Two options of the VIGIRO IP26 are available.

The VIGIRO SV26 is an INTEGRATED INDUCTIVE DETECTOR  with a Vmax of 500 rpm which detects 6 to 6000 pulses/min. Preset under speed settings include -33/-20/-11/-6 %.  Quick fitting to the shaft, the sensor requires only a M12 mounting bolt (M10 optional) and features an anti-rotation flexible strap. Two options are available. The VIGIRO SV26 IS NOT usable with the M-JET+ Hazard monitor.

Available Models

VIGIRO IP26 - Rotation speed sensor : ATEX (II2D) IP67 T 80°C

VIGIRO IP26 - Rotation speed sensor: IP67 T 80°C

VIGIRO SV26 - Rotation speed sensor: ATEX (II2D) IP67 T 80°C

VIGIRO SV26 - Rotation speed sensor: ATEX IP67 T 80°C

Vigiro IP26 Motion Controller Motion Controller Product Certifications

Get More Information on This Product





    Specifications
