High Vacuum Domed Explosion Vent Panel EV-VD-HV

Product code: 51503

Applications

The High Vacuum Domed Explosion Vent Panel EV-VD-HV is specifically engineered to be an ideal solution for applications where negative operating pressures exceed 3 psi or operational metal fatigue is anticipated. Some high energy pulse-jet filter cleaning mechanisms, and systems operating under extreme high pressure, have been known to significantly shorten the life of standard explosion panels.

The High Vacuum Domed Explosion Vent Panel EV-VD-HV is pressure tested and certified under a variety of test standards. EV-VDHV explosion vent panels are ideal for OEM and retrofit extreme duty applications. They are easy to install with premium gaskets and integral flanges.

Standard burst pressure is 1.45 psi / 0.1 bar. Application specific burst pressures between 1.45 psi up to 7 psi are available for special orders.

High Vacuum Explosion Vent Panels product certifications

Get More Information on These Products

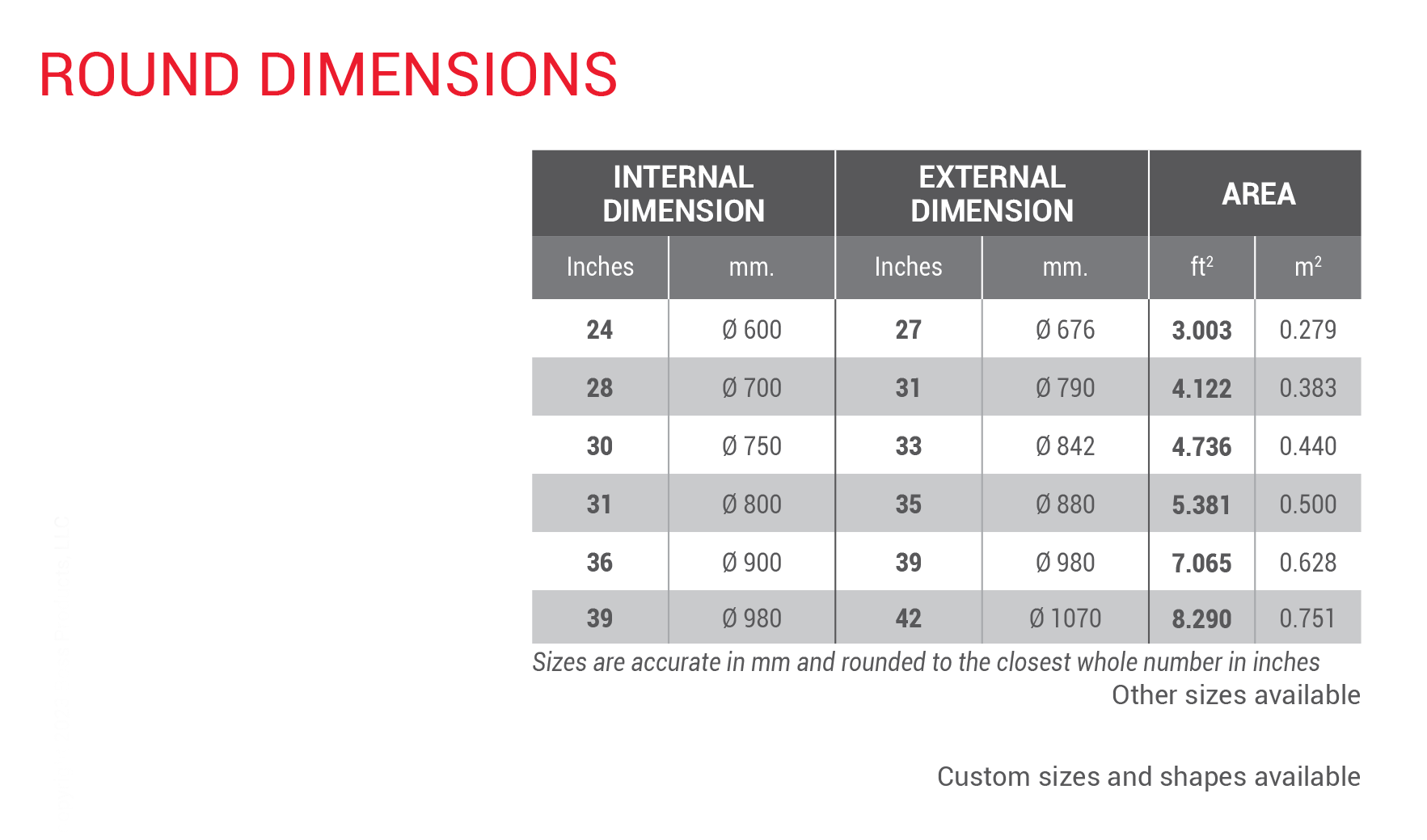

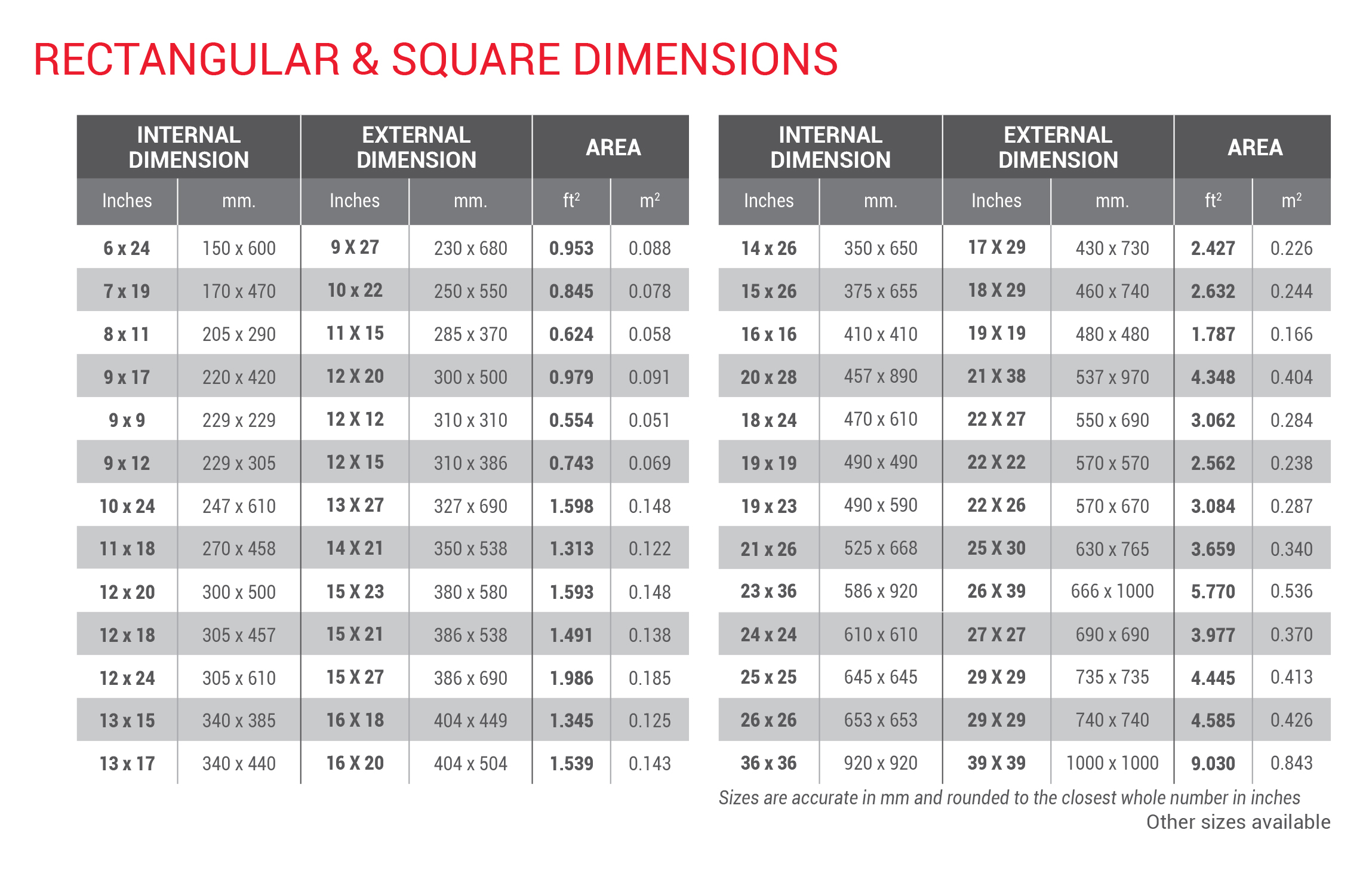

    Specifications
